Full automatic L-type heat shrinkable sealing and cutting machine

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JY-FQL450A



Packing speed: 15-30bags/min

Maximum package size L+H(H<150mm): <400mm

Maximum package size W+H(H<150mm): <300mm

Sealing knife size:570*470mm

Machine size: 1700*830*1450mm

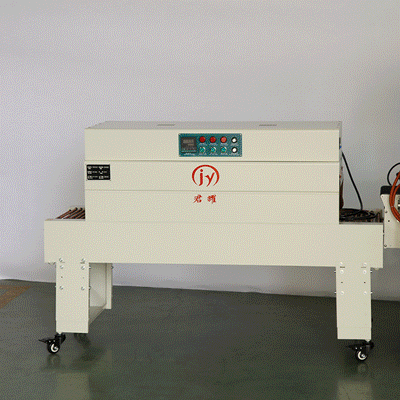

Thermal contraction channel:2400*600*1700mm

Packaging film material:POF/PE

Total weight: 300kg

Use power: 6.0-8.0kg/cm²


Power supply: 220V  50-60Hz

Product introduction

JY-FQL450 series sealing and cutting machine is a fully automatic, unmanned L-type sealing and cutting machine, which is widely used in the process of batch production and packaging with high efficiency. Automatic film feeding and punching device, manual adjusting film guide system and manual adjusting film feeding and conveying platform are applicable to products of different sizes.

Scope of application:

It is suitable for super large batch shrink packaging in software, food, cosmetics, printing, pharmacy, flooring, ceramics, beverages, hardware and other industries.


1. The sealing knife is made of DuPont Teflon coated high temperature resistant aluminum alloy, which is not easy to adhere, and the sealing is not easy to crack, coke, smoke, and zero pollution.

2.Automatic feeding, the length can also be automatically adjusted through the combination of electric eye and timer. Equipped with induction motor to automatically reel waste.

3.Imported photoelectric detection is adopted, with a group of horizontal and vertical detection for easy switching and selection. For thin and small packaging, sealing and packaging can be easily completed.

4.The temperature controller adopts digital display temperature controller, with built-in PID function. The sealing knife temperature is extremely sensitive and accurate, and can be set at will. The sealing knife itself also has an automatic protection function to effectively prevent the packaging from being cut by mistake.

5.When the size of the package changes, the adjustment is very simple, without changing the mold and bag maker.

6.The sealing and cutting part of the machine is equipped with a Plexiglas protective cover and an automatic alarm function, which greatly improves the safety of the operator.

7.The whole set of machines can truly realize the unmanned operation connection with the production line.


         5Q3A7789            5Q3A7788
